US-type turnbuckles are heavy-duty tensioning devices that follow US Federal Specifications (FF-T-791b/ASTM F1145) but are widely used in metric-based global markets.
While US-type turnbuckles are sized by imperial thread diameters, they are frequently sold and specified in metric equivalents. Below are common sizes and their typical Working Load Limits (WLL) based on drop-forged carbon steel:
| Imperial Size | Metric Equivalent | Typical WLL (kg) | Typical Take-Up (mm) |
| 1/4″ | ~6.4 mm | ~225 kg (500 lbs) | 100 mm (4″) |
| 5/16″ | ~7.9 mm | ~360 kg (800 lbs) | 115 mm (4.5″) |
| 3/8″ | ~9.5 mm | ~540 kg (1,200 lbs) | 150 mm (6″) |
| 1/2″ | ~12.7 mm | ~1,000 kg (2,200 lbs) | 150 / 300 mm (6″/12″) |
| 5/8″ | ~15.9 mm | ~1,580 kg (3,500 lbs) | 150 / 300 mm (6″/12″) |
| 3/4″ | ~19.1 mm | ~2,350 kg (5,200 lbs) | 150 / 300 / 450 mm (6″/12″/18″) |
| 1″ | ~25.4 mm | ~4,530 kg (10,000 lbs) | 150 / 300 / 600 mm (6″/12″/24″) |
Note: WLL can vary by manufacturer. Always verify the stamp on the turnbuckle body.
Determine the Load: Calculate the maximum tension required.
Select Take-Up: This is the distance the turnbuckle can shorten to pull out slack. For long runs (e.g., 30m of cable), choose a longer body (300mm+) to ensure you can reach full tension.
Match End Fittings:

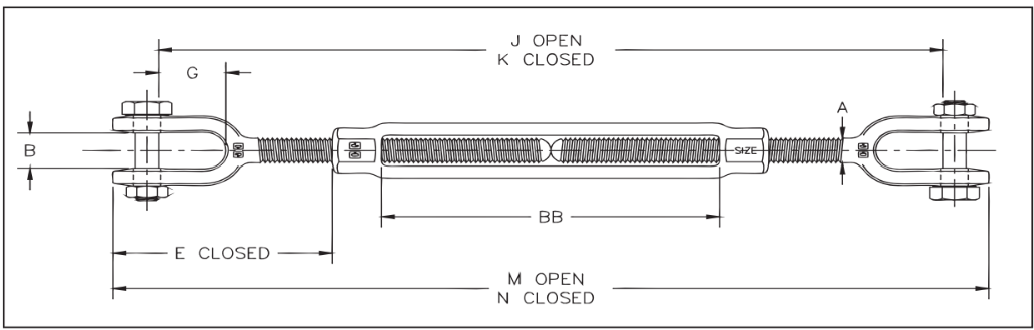

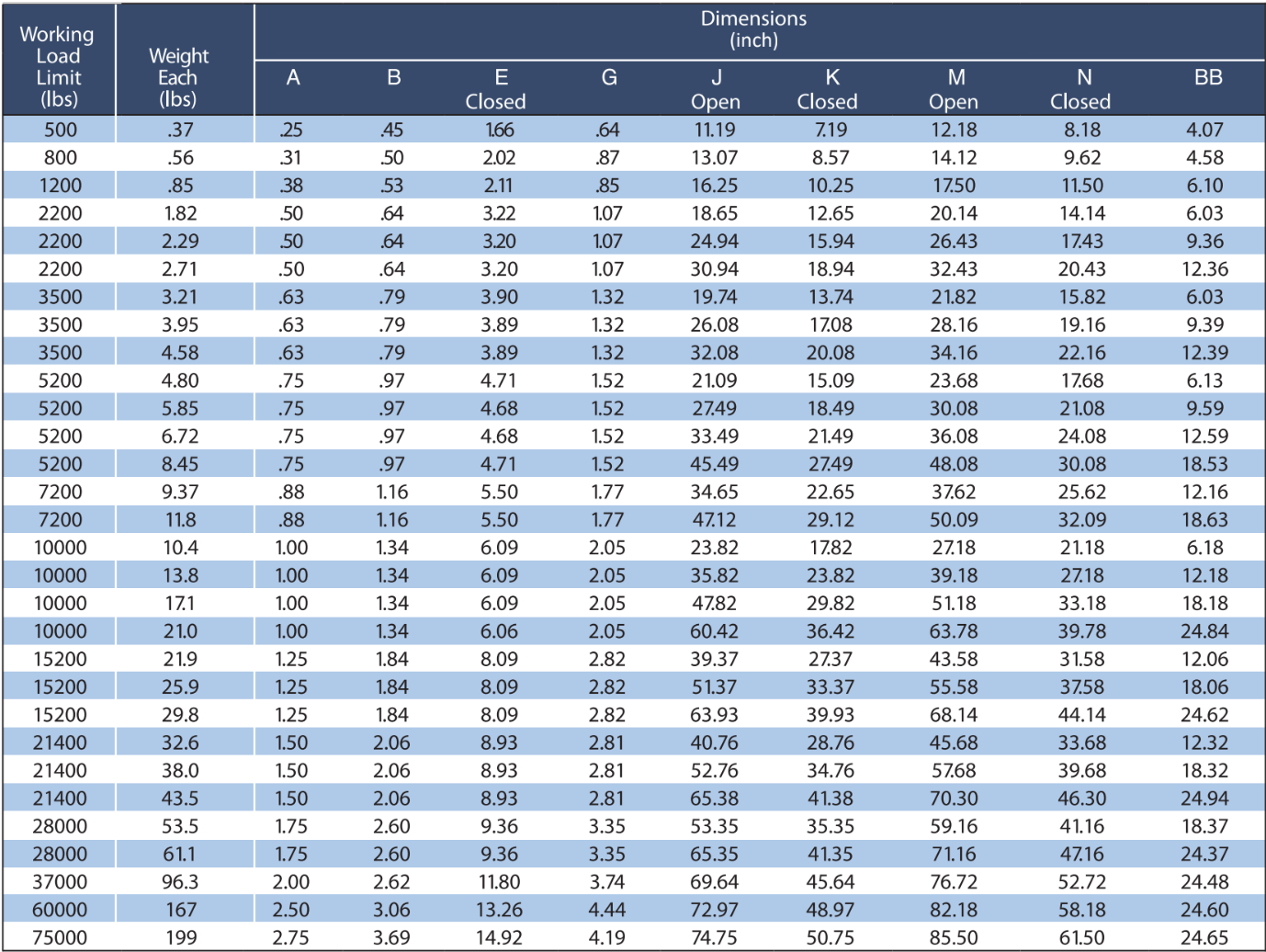

Jaw ends for permanent, secure connections to fixed eyes.
Eye ends for connecting with shackles.

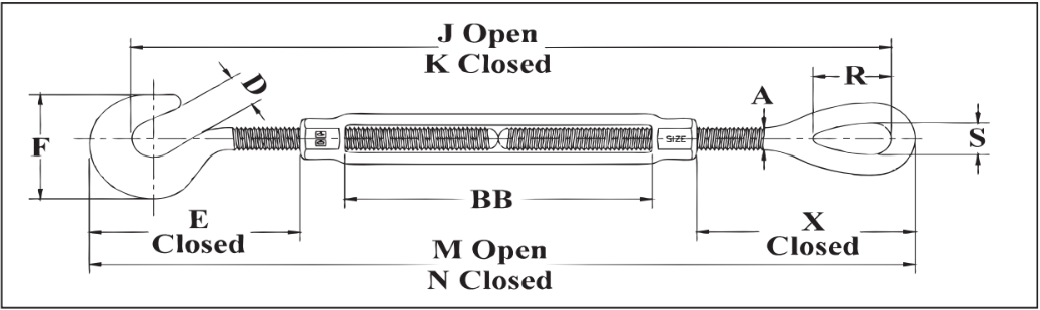

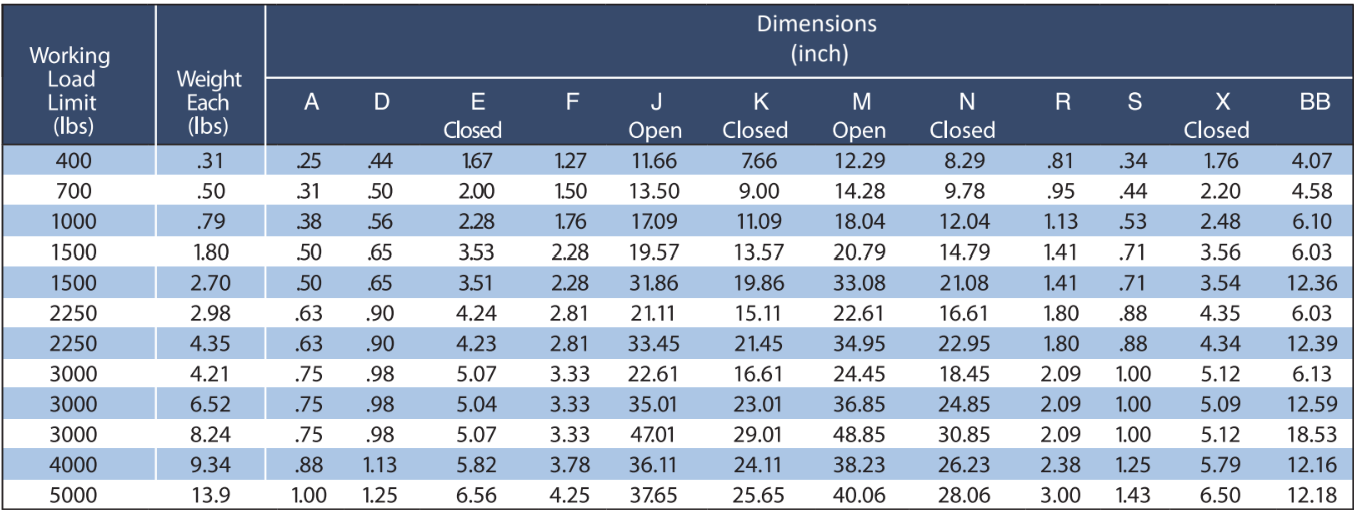

Hook ends for temporary setups where quick release is needed (note: hooks have lower WLL than jaws/eyes).
Material/Environment: Use Hot-Dip Galvanized for general outdoor use and 316 Stainless Steel for marine or highly corrosive environments.
Straight Line Pull Only: Turnbuckles are designed for inline tension only. Side-loading or bending the body can lead to failure.
Thread Engagement: Ensure threads are fully engaged within the body. Never back them out past the “safe” point where the threads are no longer visible inside the frame.
Prevent Loosening: In high-vibration environments, use lock nuts, safety wire, or cotter pins to prevent the turnbuckle from unscrewing itself.
No Heat: Never weld or apply heat to a forged turnbuckle, as this destroys the heat treatment and makes the metal brittle.
Inspection: Regularly check for galling (thread seizing), cracks, or deformation. Lubricate threads periodically to ensure smooth adjustment.
