Galvanized JIS (Japanese Industrial Standard) type turnbuckles are high-strength tensioning devices primarily used in marine, construction, and industrial rigging applications. They feature an open-frame body and are typically hot-dip or electro-galvanized to provide superior resistance to rust and corrosion in harsh outdoor environments.
Size Range: Commonly available in thread diameters ranging from 6mm to 50mm.

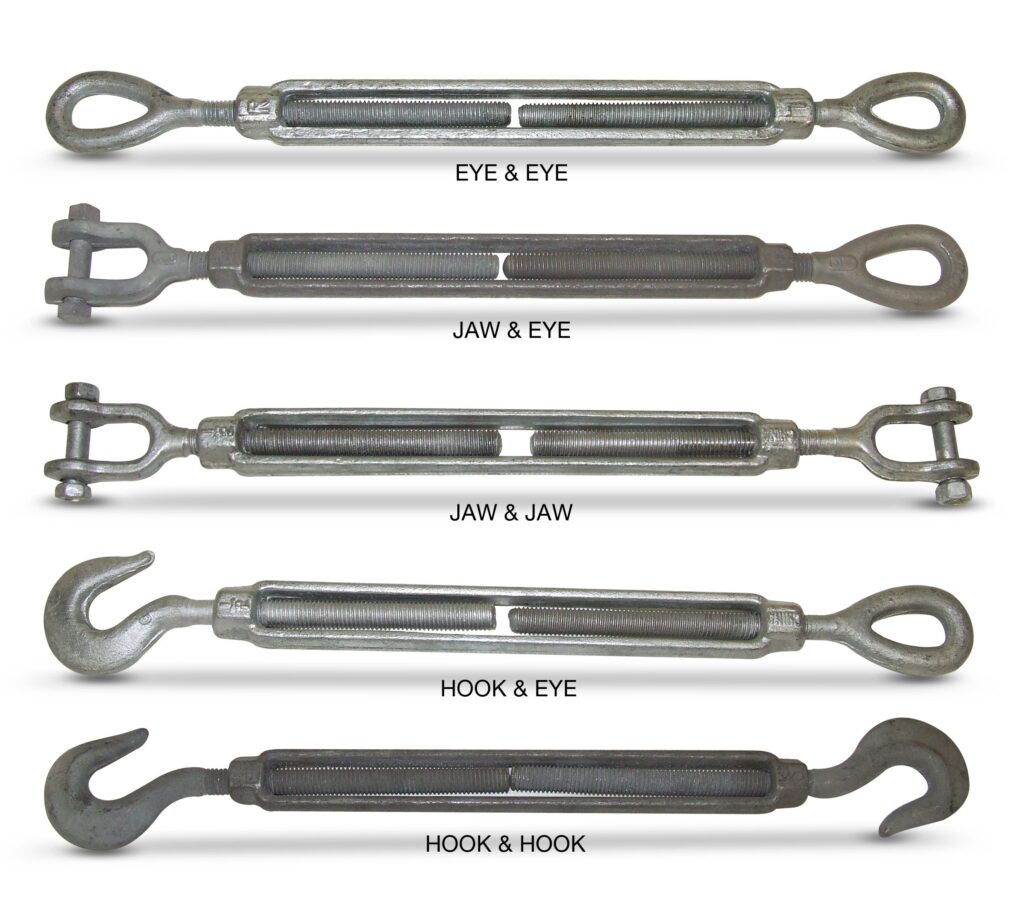

End Configurations: Available in multiple combinations, including Eye & Eye (OO), Hook & Eye (CO), and Hook & Hook (CC).
Eye and Eye (EE): Feature closed loops on both ends. These are ideal for permanent or semi-permanent installations where the connection is made through a shackle or quick link.
Hook and Eye (HE): Combine an open hook for quick attachment/removal and a closed eye for a stable anchor. These are frequently used for temporary setups or periodic tensioning.
Hook and Hook (HH): Feature open hooks on both ends for the fastest installation and disconnection. These are strictly for temporary, non-critical use.
Jaw and Jaw (JJ): Consist of U-shaped jaws secured with a pin or bolt. These provide high security and are used to connect to fixed points that cannot be opened, like eye bolts.
Jaw and Eye (JE): A hybrid option that provides a secure, non-slip jaw on one end and a flexible eye on the other.
Commercial turnbuckles are generally made of malleable iron (cast) or electro-galvanised steel, making them an economical choice for non-critical, static loads.
Construction: Bracing scaffolding, supporting temporary fences, and tensioning guardrail cables.
Agriculture & Landscaping: Tensioning wire fences, trellises, and greenhouse supports.
Marine: Light-duty rigging for small watercraft and securing deck equipment.
Entertainment: Adjusting tension in boxing/wrestling rings and securing light stage scenery.
Failure to follow safety protocols can lead to equipment failure or structural collapse.
Load Limits: Never exceed the Working Load Limit (WLL) marked by the manufacturer. Commercial malleable types are not for overhead lifting.
Alignment: Apply loads in a straight-line pull only. Avoid “side loading,” which can bend or break the turnbuckle body.
Thread Engagement: Ensure threads are fully engaged. A common standard is an engagement length of at least 1.5 times the nominal diameter of the thread.
Locking: Use jam nuts, cotter pins, or safety wire to prevent the turnbuckle from unscrewing due to vibration.
Inspection: Check for cracks, deformation (bending), or deep corrosion before every use. Discard any component that shows more than a 10% reduction in its original dimensions.
