3-Strand PP Rope

3-Strand PP Rope

3-strand polypropylene (PP) rope is a foundational tool in shipping and offshore industries, valued primarily for its buoyancy, chemical resistance, and cost-effectiveness. Unlike natural fibers, it does not rot and maintains its full strength even when wet.

Enquire Now
Add To Cart

Specifications

Common Sizes and Specifications

Standard 3-strand PP ropes are available in a wide range of diameters to suit various load requirements, typically sold in coils of 200m or 220m.

Diameter (mm)  Approx. Breaking Strength (kg) Common Marine Applications
6 – 10 mm 600 – 1,500 kg Signal lines, small boat tie-downs, lifebuoy lines
12 – 18 mm 2,000 – 4,000 kg Light mooring, secondary dock lines, fishing gear
20 – 36 mm 5,500 – 16,000 kg Small vessel mooring, general utility on offshore rigs

Key Usage in Marine Environments

  • Mooring and Docking: Used for securing vessels to docks or buoys; its ability to float prevents it from tangling in propellers.
  • Towing and Salvage: Employed as messenger lines or for light towing where buoyancy is required for retrieval.
  • Safety and Rescue: Ideal for lifebuoy lines and rescue throw lines because it remains highly visible on the water’s surface.
  • Offshore Operations: Used in oil fields and port operations for non-critical hauling and securing equipment.

How to Choose the Right Rope

  1. Determine Required Strength: For mooring, the total breaking load of your lines should be at least 2x the weight of the vessel to account for shock loading.
  2. Factor in Safety Margins: Standard safe working load (SWL) should generally not exceed 1/6th of the minimum breaking strength. For critical applications, a safety factor of 10 or 12 may be required.
  3. Consider Environmental Resistance: If the rope will be in constant sunlight, ensure it contains UV stabilizers.
  4. Evaluate Material Type:
    1. Monofilament: Stiffer and highly abrasion-resistant.
    2. Multifilament: Softer and easier to handle but more prone to surface wear.

Critical Precautions

  • Avoid Friction Heat: Polypropylene has a low melting point (~165°C). Friction on winch drums or bitts can cause the rope to melt and fuse.
  • Manage UV Exposure: Prolonged exposure to direct sunlight causes “powdering” and brittleness. Store ropes under covers or in shaded areas when not in use.
  • Snap-back Awareness: Synthetic ropes store energy under tension. If they break, they can “snap back” with lethal force; crew should never stand in the line of potential recoil.
  • Inspection: Regularly check for internal powdering, surface abrasion, or fused fibers. Discard ropes if their strength is suspected to have dropped to 75% of the original rating.
  • Splicing: When splicing 3-strand PP, use at least four full tucks to prevent the strands from drawing out under load.

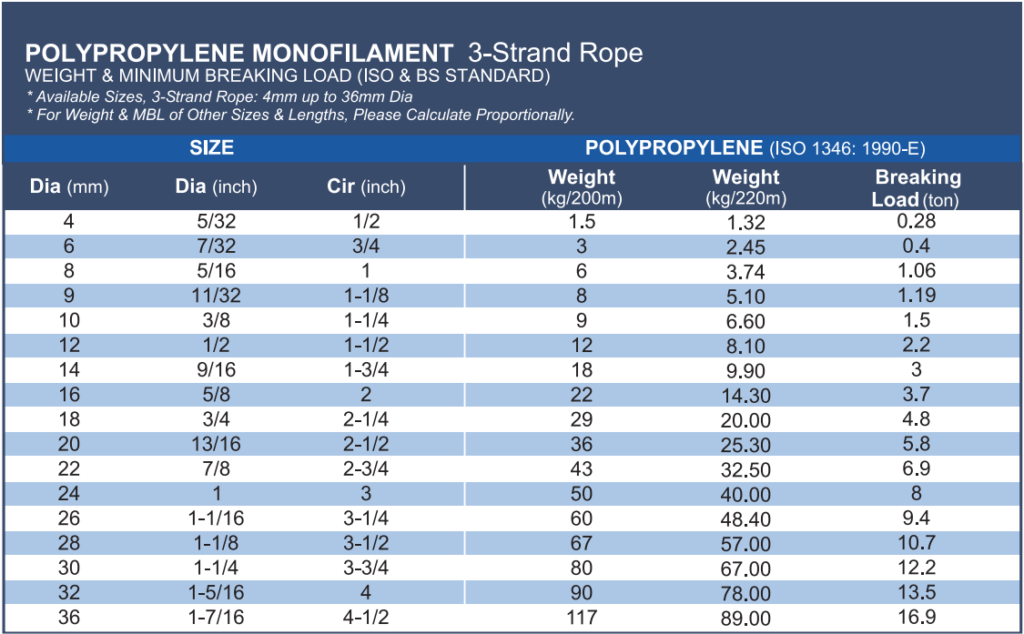

See table below for common sizes:
